Research

Targeted Sequencing

Focus your sequencing efforts on the genomic regions of interest

Targeted sequencing offers unique insights into specific regions of interest in the genome. It is a powerful application for investigating a variety of disease areas, such as oncology, inherited diseases, immunology and infectious diseases. This application allows targeting of specific genes, coding regions, even segments of chromosomes with precision and efficiency.

Targeted sequencing is more cost-effective than whole genome sequencing (WGS). It also enables deeper analysis of results than WGS and other survey approaches. In addition, the depth of coverage helps to avoid false interpretations of sequencing data. Because of this sensitivity, targeted sequencing provides tremendous advantage in variant calling in cancer research, identification of disease-associated mutations, single gene disorders and in gene expression studies. Targeted sequencing of specific regions also enables the discovery of causative genes for rare diseases. The focused approach of targeted sequencing provides the possibility of its use in targeted therapy applications and in personalized medicine efforts.

The benefits of targeted sequencing
  • Allows detection and quantification of rare and low-frequency variants
  • Enables higher coverage, deeper sequencing and straightforward data analysis
  • Provides cost effectiveness, time and resource savings
  • Offers a more manageable dataset for subsequent bioinformatics analysis
  • Allows more samples to be analyzed than whole genome sequencing does
How does targeted sequencing work?

The sample preparation workflow for targeted sequencing requires an additional step of target enrichment. It uses user-defined probe or primer sets to enrich specific genomic regions of interest, thus causing only that region to be sequenced. The three methods for target enrichment are based on hybridization, amplification or primer-extension.

The hybridization-based target enrichment method

In the hybrid capture method, the process starts as a standard library preparation workflow. DNA is fragmented by shearing or using enzymes. Then adapters specific for the sequencing platform are added. Next, they are incubated with pools of biotinylated oligonucleotide probes designed to target specific regions of interest within a DNA fragment library. Finally, streptavidin-coated magnetic beads are used to attract the biotinylated probe/target hybrids. This method results in a sequencing-ready library that is highly enriched for the targeted DNA.

The PCR-based target enrichment method

In PCR-based methods, both uniplex and multiplex PCR reactions can be used. In multiplex PCR several primers targeted toward different target genes are used to generate multiple amplicons in a single reaction. After amplification, a normalization step is carried out for normalizing the concentration of the multiple PCR products. Then the pooled products are sequenced. While this method is efficient and easy to use, it is not ideal for targeting large genomic regions due to the cost of reagents for multiple reactions. Failure of targets to amplify and PCR bias are other drawbacks associated with PCR-based enrichment methods.

The primer-extension target enrichment method

The primer-extension method combines the advantages of the above two methods, high performance with speed and ease of use. This approach incorporates the hybridization and the initial library preparation method. Then instead of probes, a primer pair (biotinylated Capture Primer, and Release Primer) is used to capture and release (but not amplify) the targeted library fragments. Streptavidin-coated magnetic beads are used to attract the biotinylated primer-extension/target hybrids, which are released by the release primer in the supernatant, for downstream NGS. The resulting sequencing-ready library is highly enriched for the targeted DNA.

Our Roche offering

Robust target enrichment and construction of libraries with maximum molecular complexity and minimal bias is critical for targeted sequencing applications. Roche offers performance-optimized hybridization-based probes and primer-extension primer sets, both as fixed designs and custom panels.

In addition, Roche also offers an integrated approach to sample preparation using its validated sample preparation solutions encompassing all the steps required (from sample collection to quantification) to convert a sample to a sequencing-ready library.

Learn more about our
Sample Prep Solutions
Targeted sequencing for oncology research

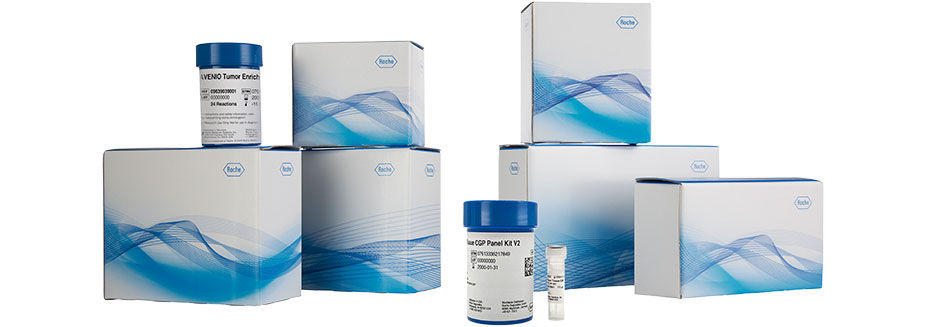

For oncology, Roche offers a portfolio of NGS assays that provide in-house tumor profiling, comprehensive genomic profiling (CGP), and surveillance & monitoring for clinical research. Through a simpler, end-to-end workflow, the kits offer a versatile solution for research purposes to evaluate DNA extracted from either formalin-fixed paraffin-embedded (FFPE) tissue or plasma samples.

For Research Use Only. Not for use in diagnostic procedures.
